According to the archives space design, or customized according to customer requirements

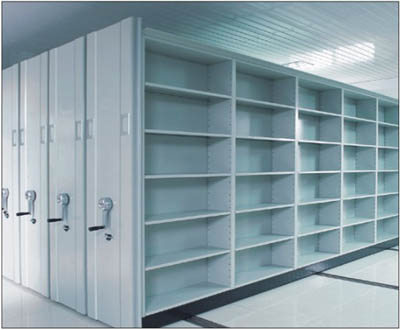

Dense shelf function:
The dense shelf is used for systematic management of archives, books and other materials, easy to classify, convenient access sequence, and greatly improve work efficiency; the number of columns can be increased from 2 columns to 10 columns or more, with large capacity and space saving. Compared with the fixed storage cabinet, the same capacity only needs 1/3 of the space, and the safety factor is high, with dust, mice, moisture, fire, shock, earthquake, and so on. Antitheft and other six functions. It is necessary for the government, enterprises, institutions, army, library and archives office to store archives and documents, and it is also an ideal equipment for reaching the standard of archives management level.
1. Structure and working principle: The frame is a kitchenstyle structure, with baffles in the middle of each layer, which has higher confidentiality and stronger moisture-proof ability.
The dense frame is composed of track, floor, column, laminate, roof, side plate, door plate, transmission device, antidumping, antivibration braking, cushioning and sealing device. Side plate surface is concave, the overall decoration, the corner is circular arc, the appearance is more threedimensional, the lines are more smooth, more luxurious and highgrade. The chassis is grouped and combined, with high processing accuracy, docking interchangeability, easy transportation and installation, and antidumping. Solid square steel is used on the rails, and a limit device is installed at the top of the rails to prevent the site from derailing. Rail protective plate adopts 3.00mm hotrolled steel plate, which is 95mm wide, singlefold galvanized and welded on the back, so that it will not deform when bearing 2000KG. The balanced load of the laminate (AB doublesided) is over 80KG. The laminate adopts threefold bending process to increase its loadcarrying capacity. The laminate and the fixed hole are over 2.0mm. The laminate adopts integral plate. The laminate can be adjusted arbitrarily between the layers and the door plate adopts luxury structure.
